Curtis Cross' 4 Runner



    Curtis is a local DJ who came to me unsure about his purchase of this 87 runner.  The PO has done a decent job on the V8 conversion but had left some things a bit 'unfinished'.  We talked it over and decided on sprucing up the looks a bit with some accessories and  tweaking the V8 to get the best performance out of it.  Curtis is a great guy and simply said " I trust ya".



4rb001.jpg (62496 bytes) 4rb002.jpg (61433 bytes) 4rb003.jpg (62104 bytes) 4rb004.jpg (61159 bytes) 4rb005.jpg (62085 bytes)

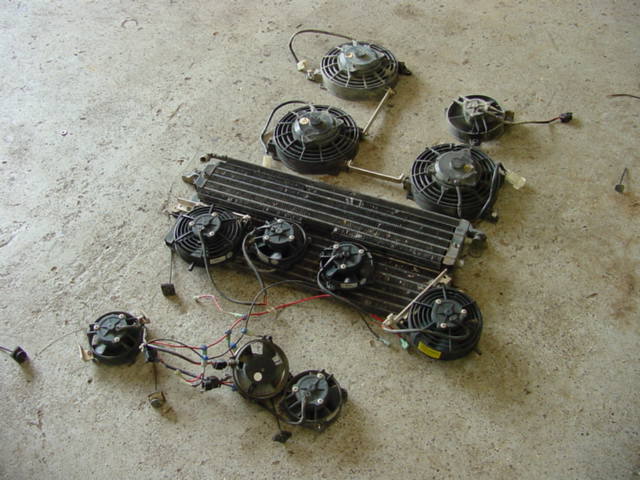

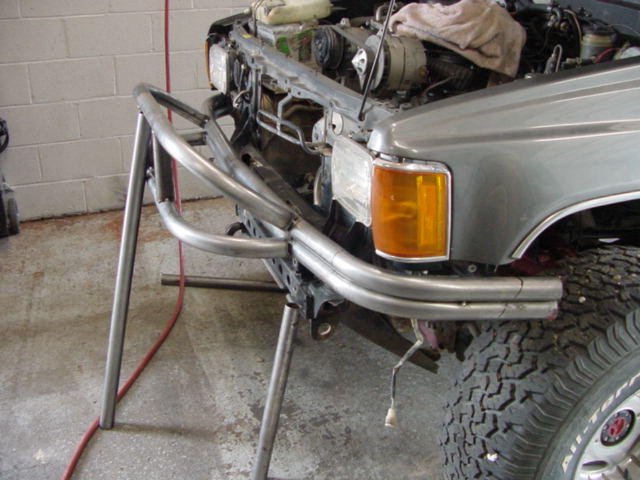

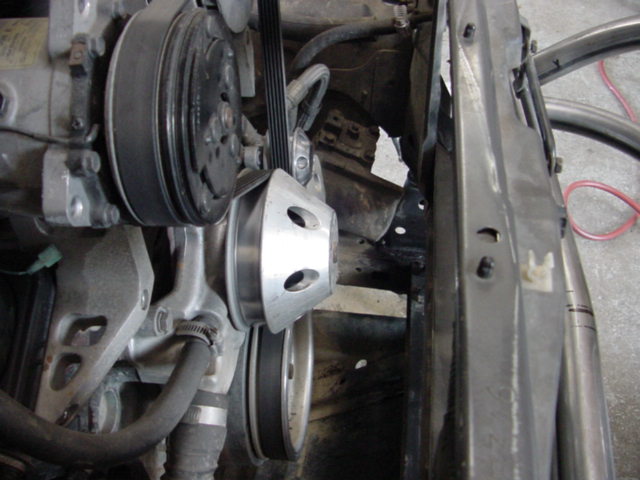

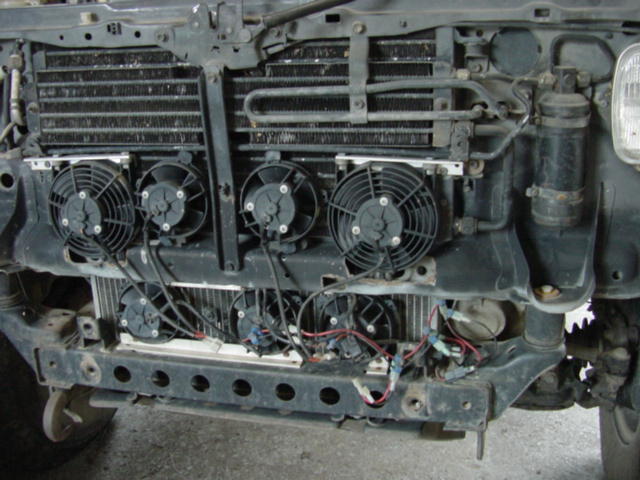

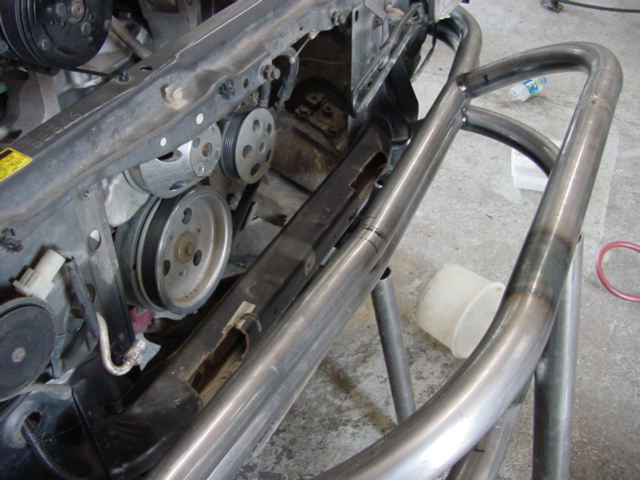

First off we took out what was originally installed, the fans, the wiring, the radiator and began the mock-up.

4rb006.jpg (63082 bytes) 4rb007.jpg (62067 bytes) 4rb008.jpg (63815 bytes) 4rb009.jpg (63839 bytes) 4rb010.jpg (62806 bytes)

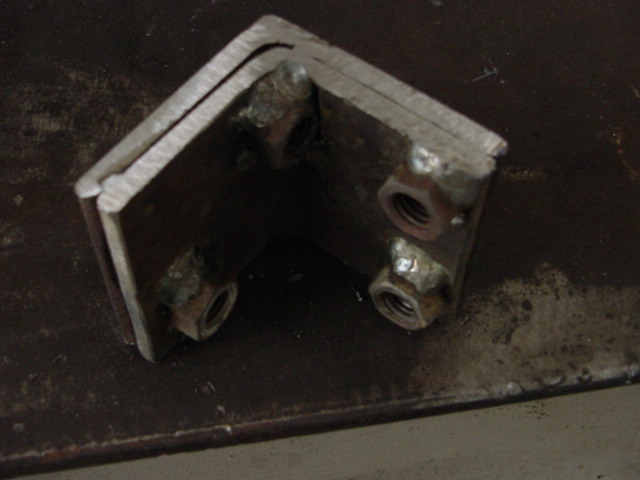

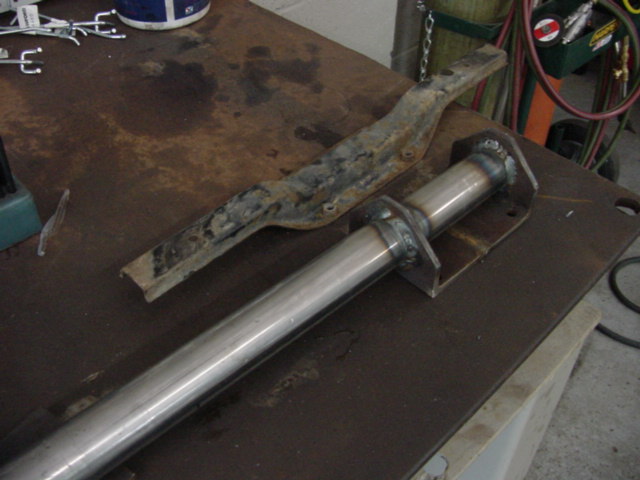

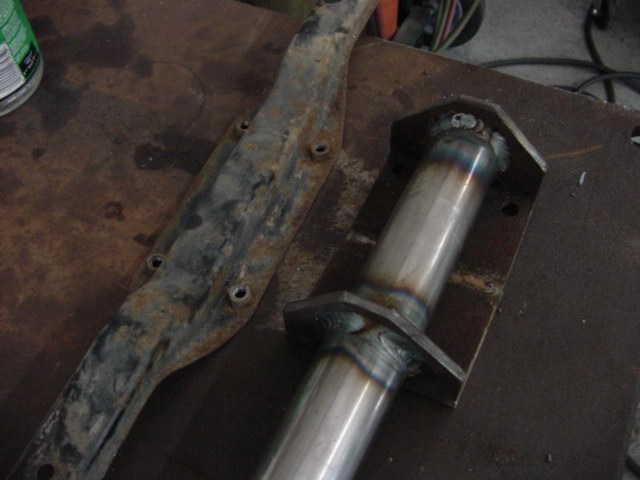

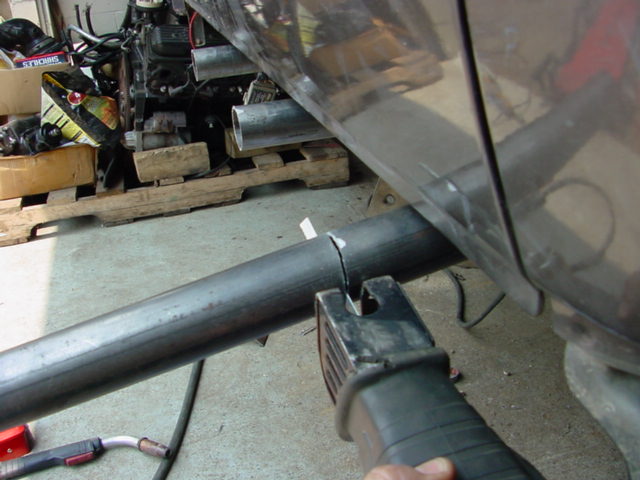

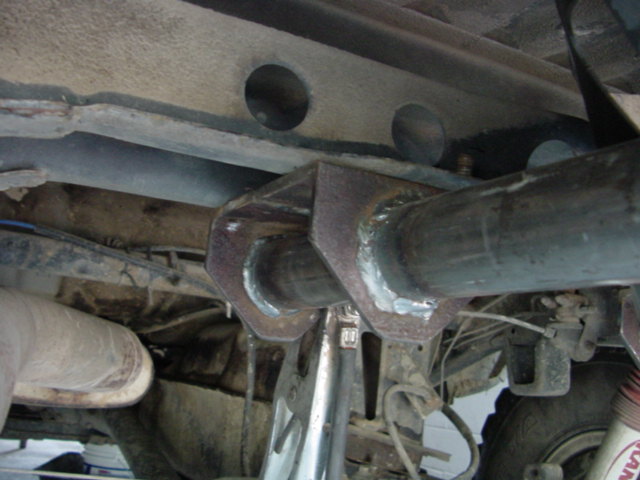

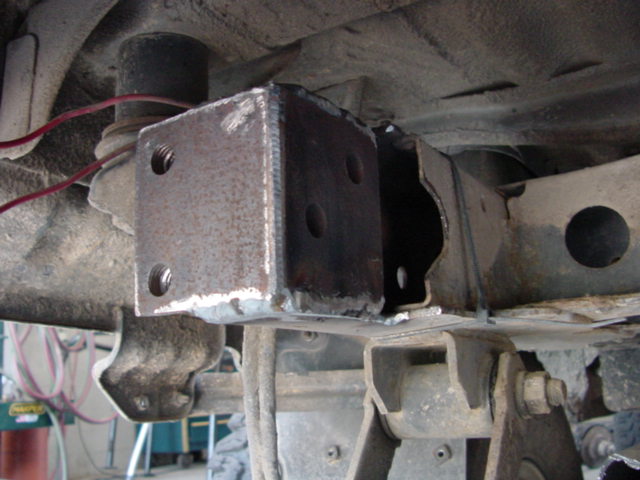

I knew the rear supports were going to be extremely difficult and time consuming to fab up.  I was right!!!

4rb011.jpg (62239 bytes) 4rb012.jpg (61472 bytes) 4rb013.jpg (62908 bytes) 4rb014.jpg (61600 bytes) 4rb015.jpg (62281 bytes)

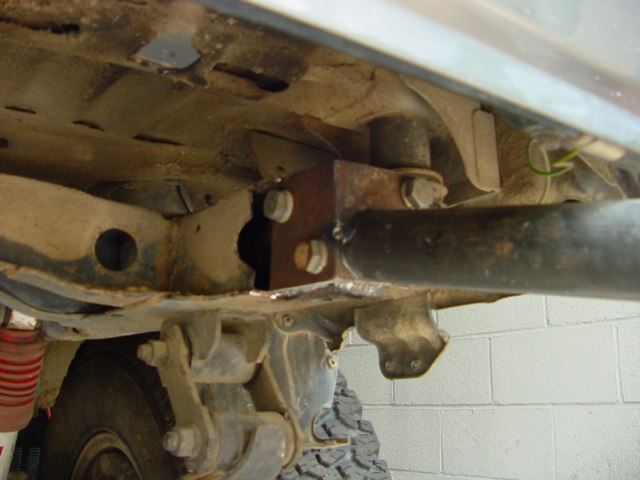

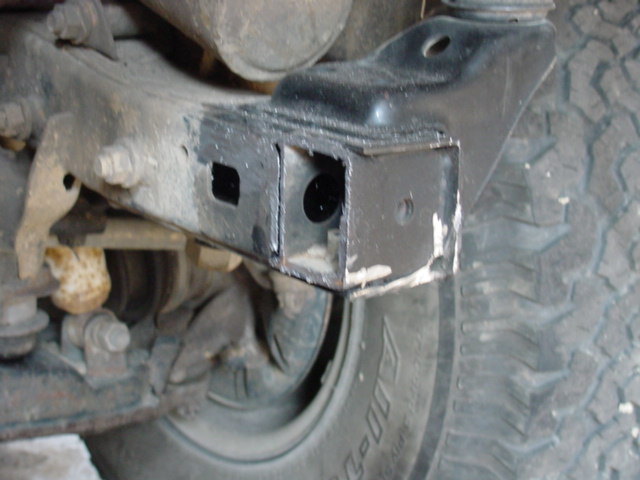

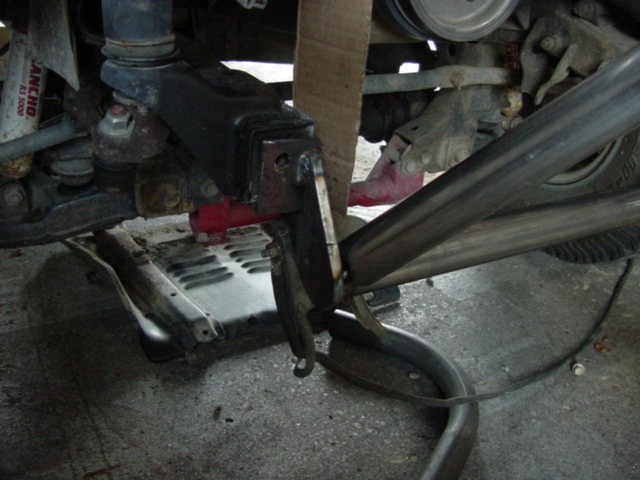

I got the mock-up on both the front and rear bumpers done and then started to attach things in there final spots.  I made the front mounts for the front bumper to extend down and out to allow room for where I planned the radiator to reside when its fitted.

4rb016.jpg (60806 bytes) 4rb017.jpg (61878 bytes) 4rb018.jpg (63251 bytes) 4rb019.jpg (62836 bytes) 4rb020.jpg (61818 bytes)

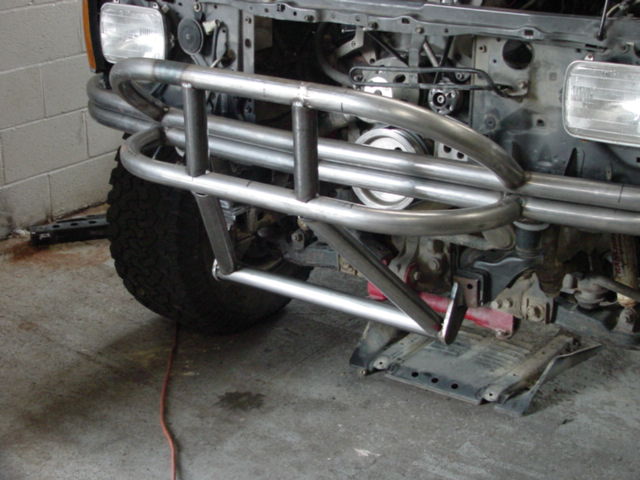

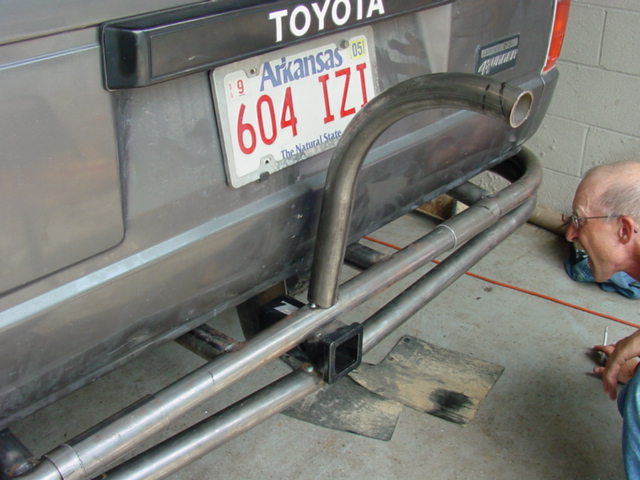

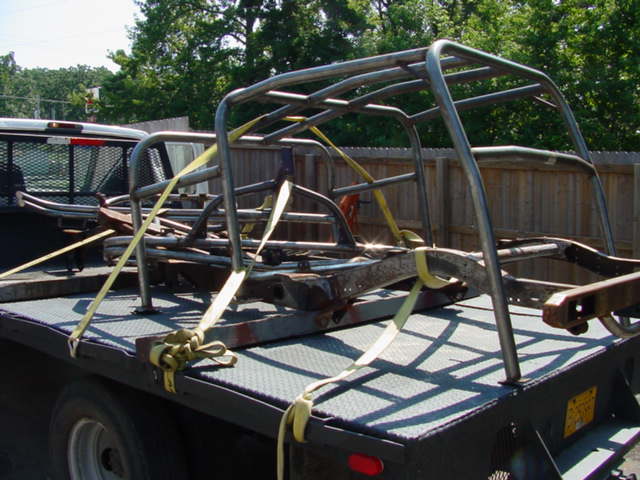

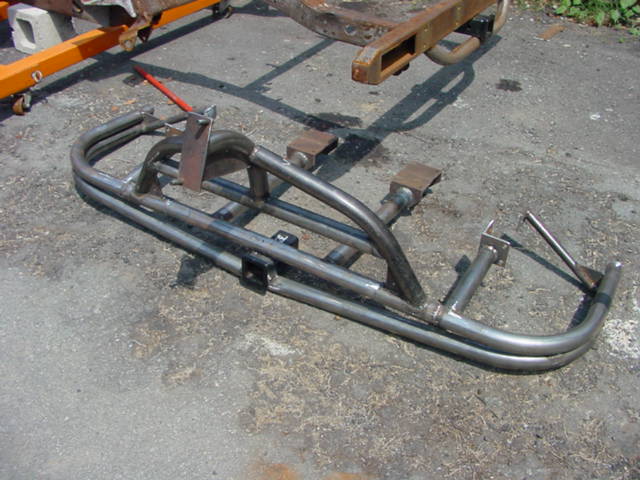

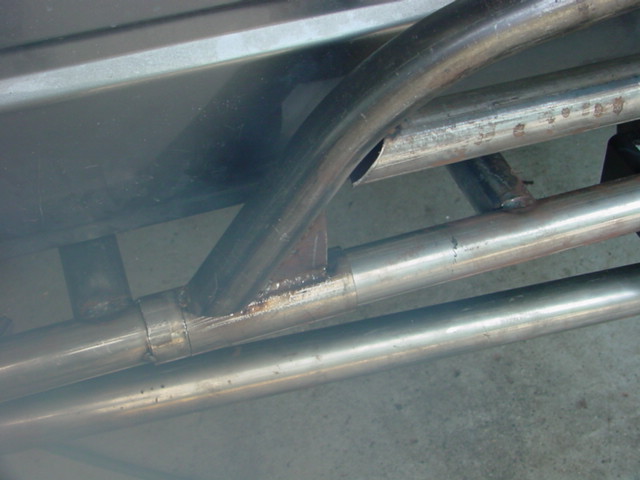

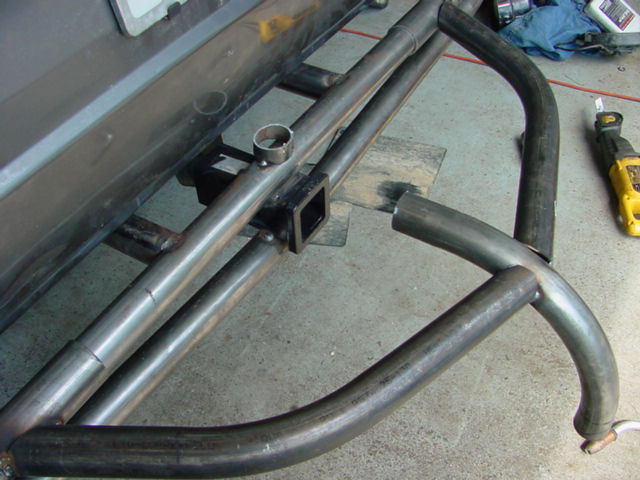

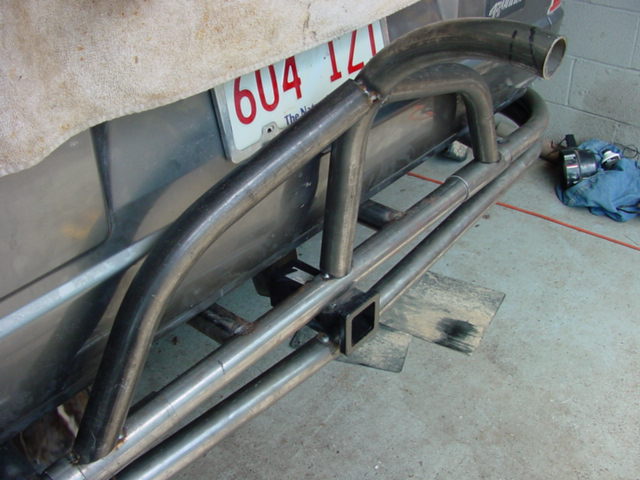

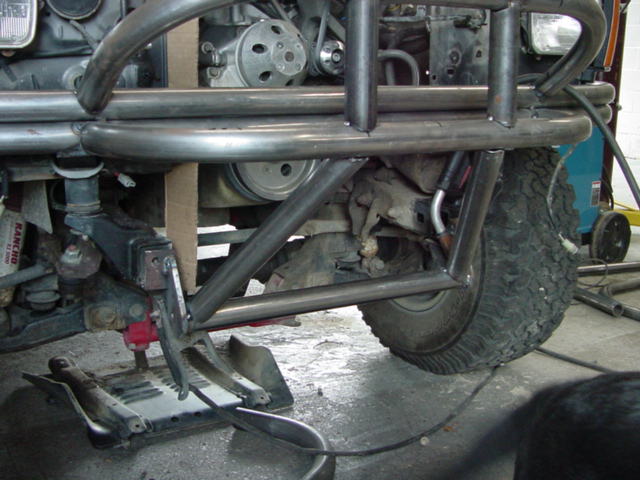

You can see the front taking shape as its tacked together.  My plan for the rear was to have a center mounted swing down carrier, Curtis agreed to be my guinea pig and thus was born my first gen. spare tire carrier.

4rb021.jpg (62017 bytes) 4rb022.jpg (63183 bytes) 4rb023.jpg (62155 bytes) 4rb024.jpg (60451 bytes) 4rb025.jpg (61977 bytes)

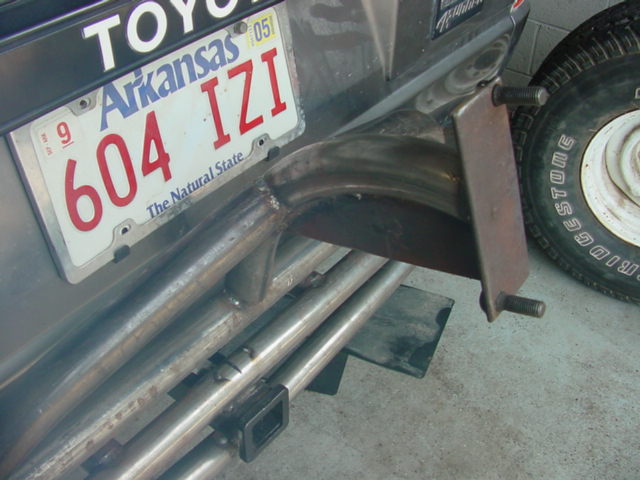

Next comes the mount for the tire and the bracing and its weld up time and off to the powder coater.

4rb026.jpg (62176 bytes) 4rb027.jpg (61919 bytes) 4rb028.jpg (62087 bytes) 4rb029.jpg (62525 bytes) 4rb030.jpg (62709 bytes)

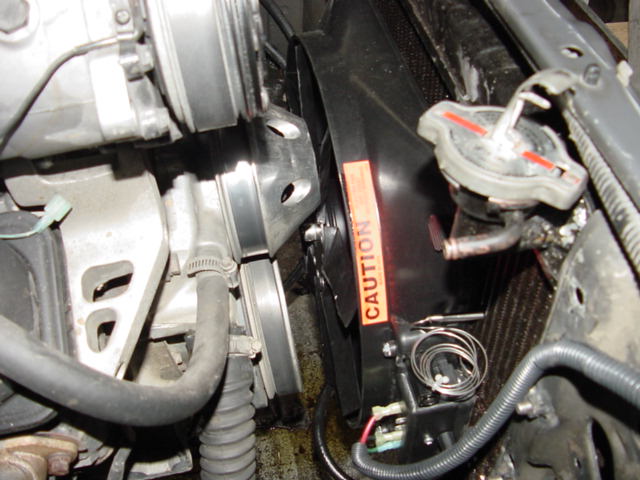

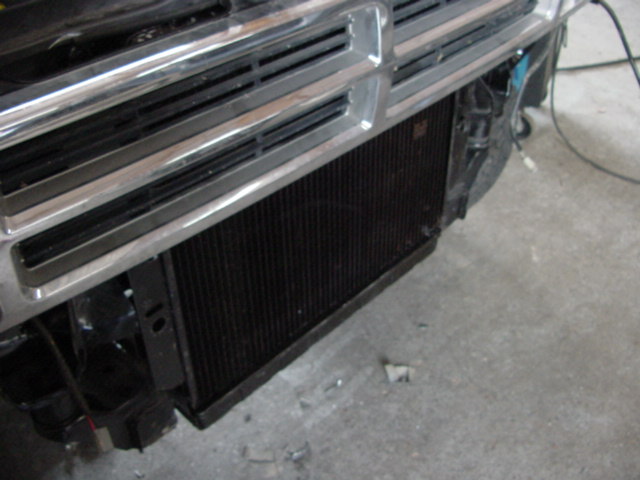

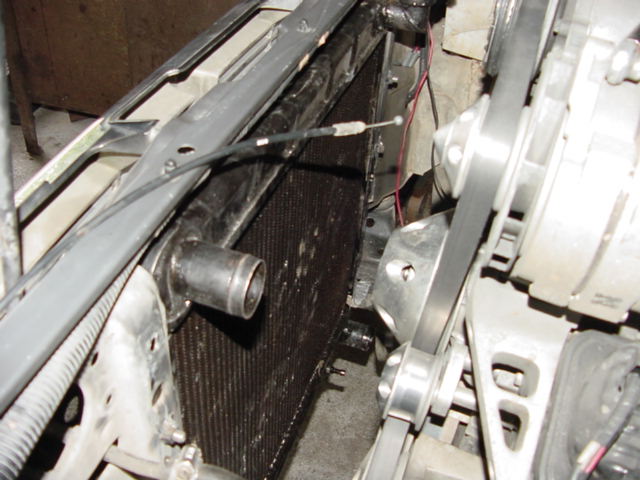

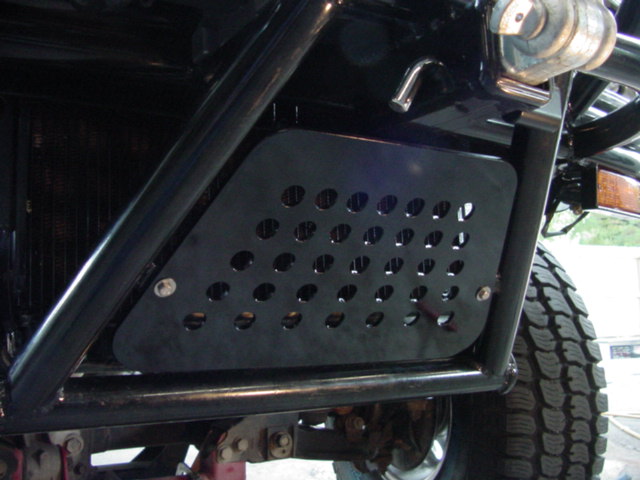

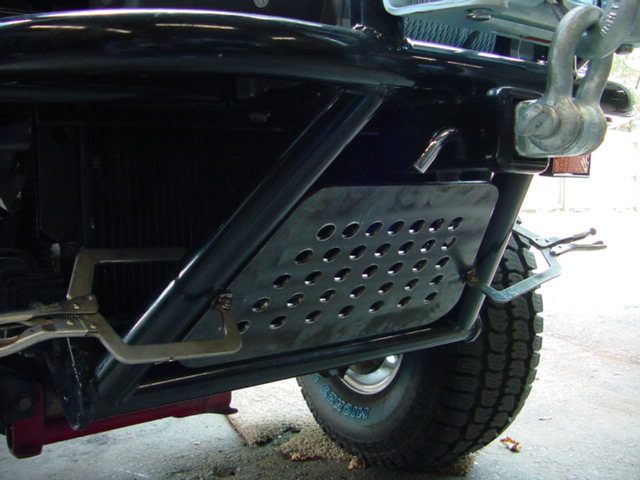

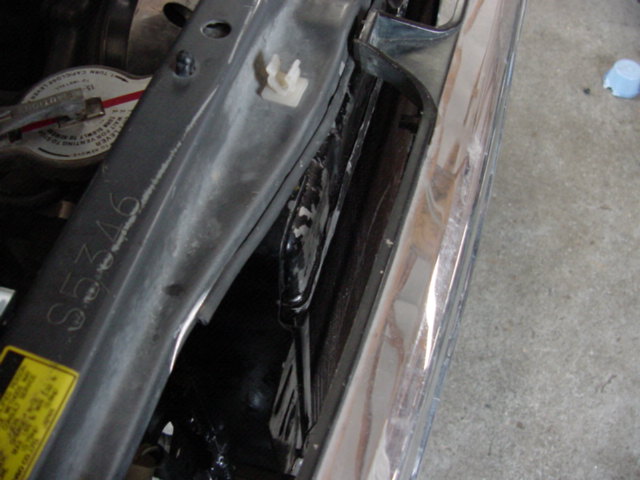

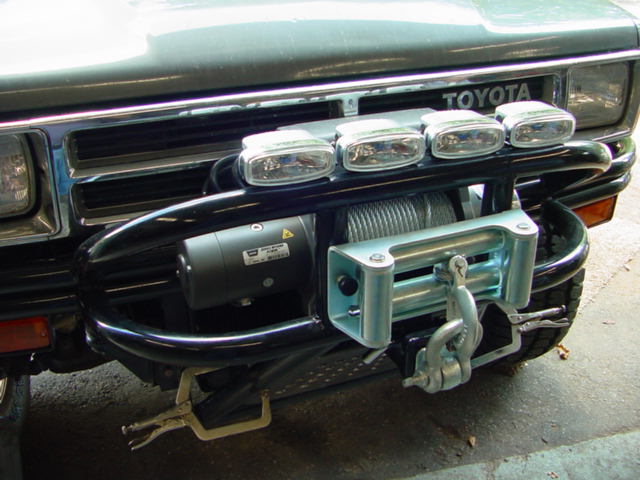

While the bumpers were gone I worked on the inside of the truck and tucked away the POs wiring job.  It wasn't too bad but just need a little rethinking.  Additionally I fit the radiator just under the radiator support but on the outside.  With some cutting and welding we made sure the fan would fit as well.  My radiator guys did a special upper tank for me that fit under the hood latch.  The bumper came back and we went to work fitting the lights and winch and the front skid plates I had laser cut for it.

4rb031.jpg (60863 bytes) 4rb032.jpg (64458 bytes) 4rb034.jpg (61471 bytes) 4rb035.jpg (62600 bytes) 4rb036.jpg (61998 bytes)

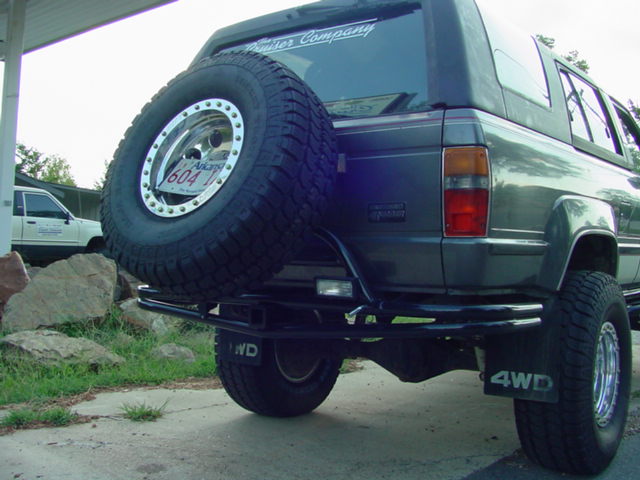

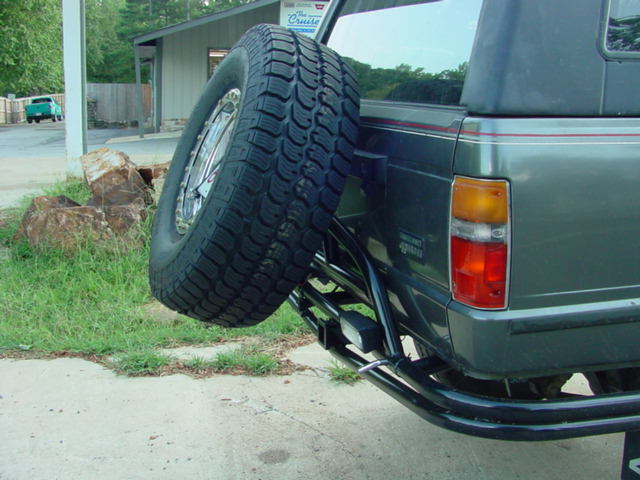

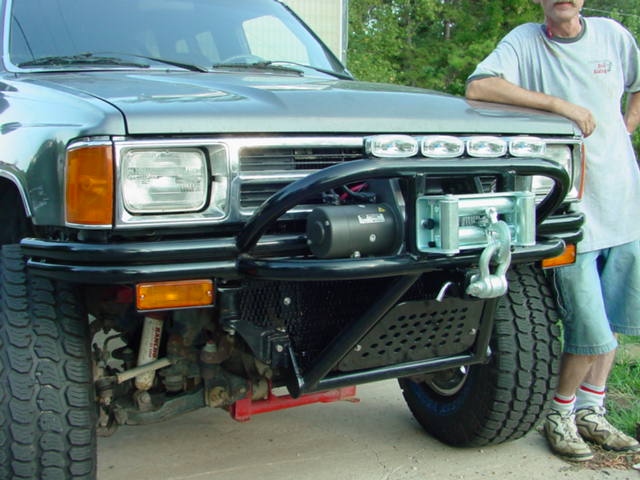

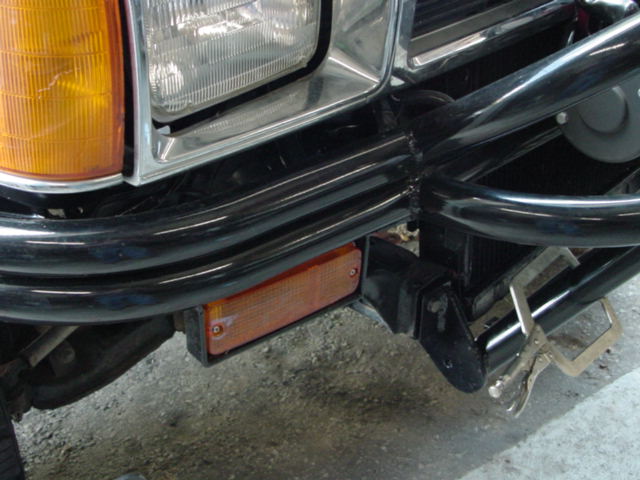

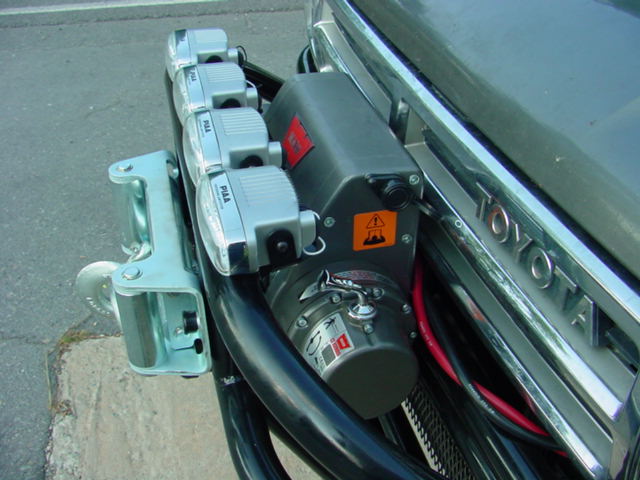

Notice the touch on the turn signals mounts I made.  You can see how things turned out in the light outside.

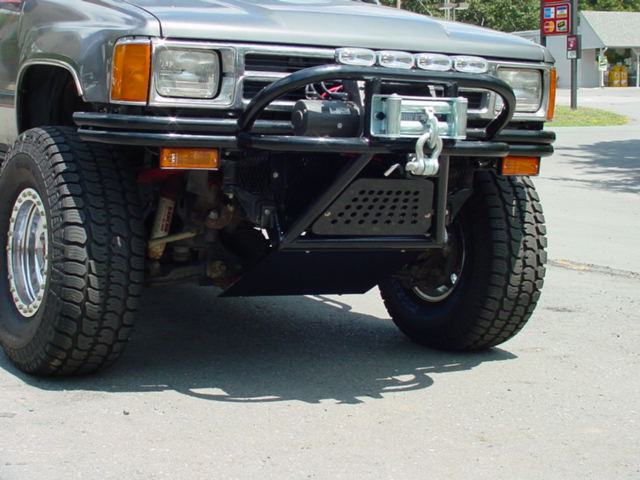

The finished product with the lower skid plate installed.
